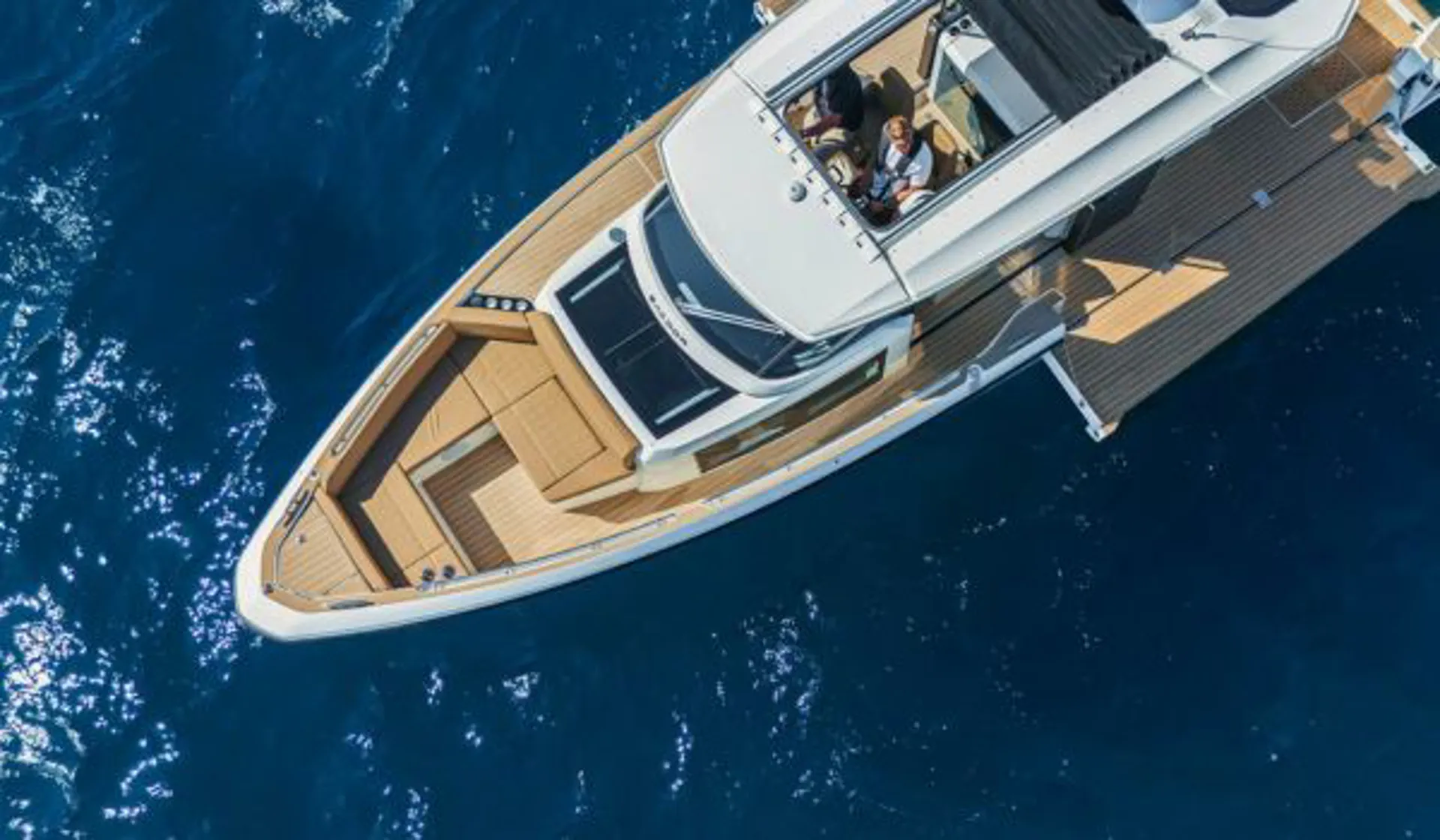

SAXDOR 400 GTS

Stanadard equipment

HULL, DECK AND HARDWARE

• Vacuum infused hull and deck – gelcoat RAL 9010 (white)

• 100% composite construction – no organic materials used in cores

• Stringer system infused together with the hull for optimal strength, weight and rigidity

• Heavy-duty transom – approx. 80 mm thickness

• Molded main bulkhead system

• RTM technology (deck hatches, galley tops, etc.)

• Anti-skid surface on all deck areas

• Fully self-draining deck (from bow to aft)

• 6 x mooring cleats – polished stainless steel

• Semi-matt powder-coated aluminium grab rails, window frames and roof supports

• Aft glass gates

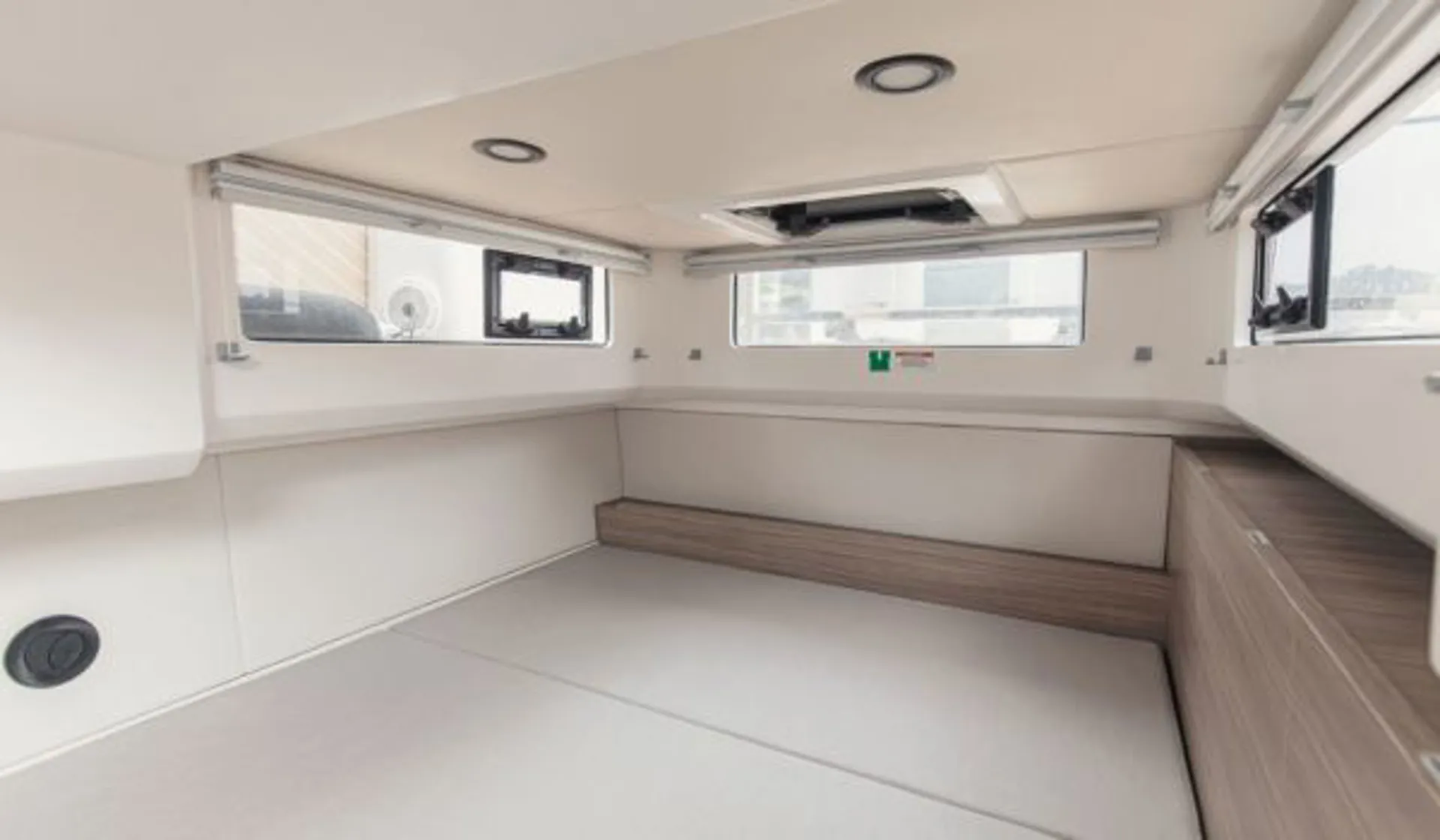

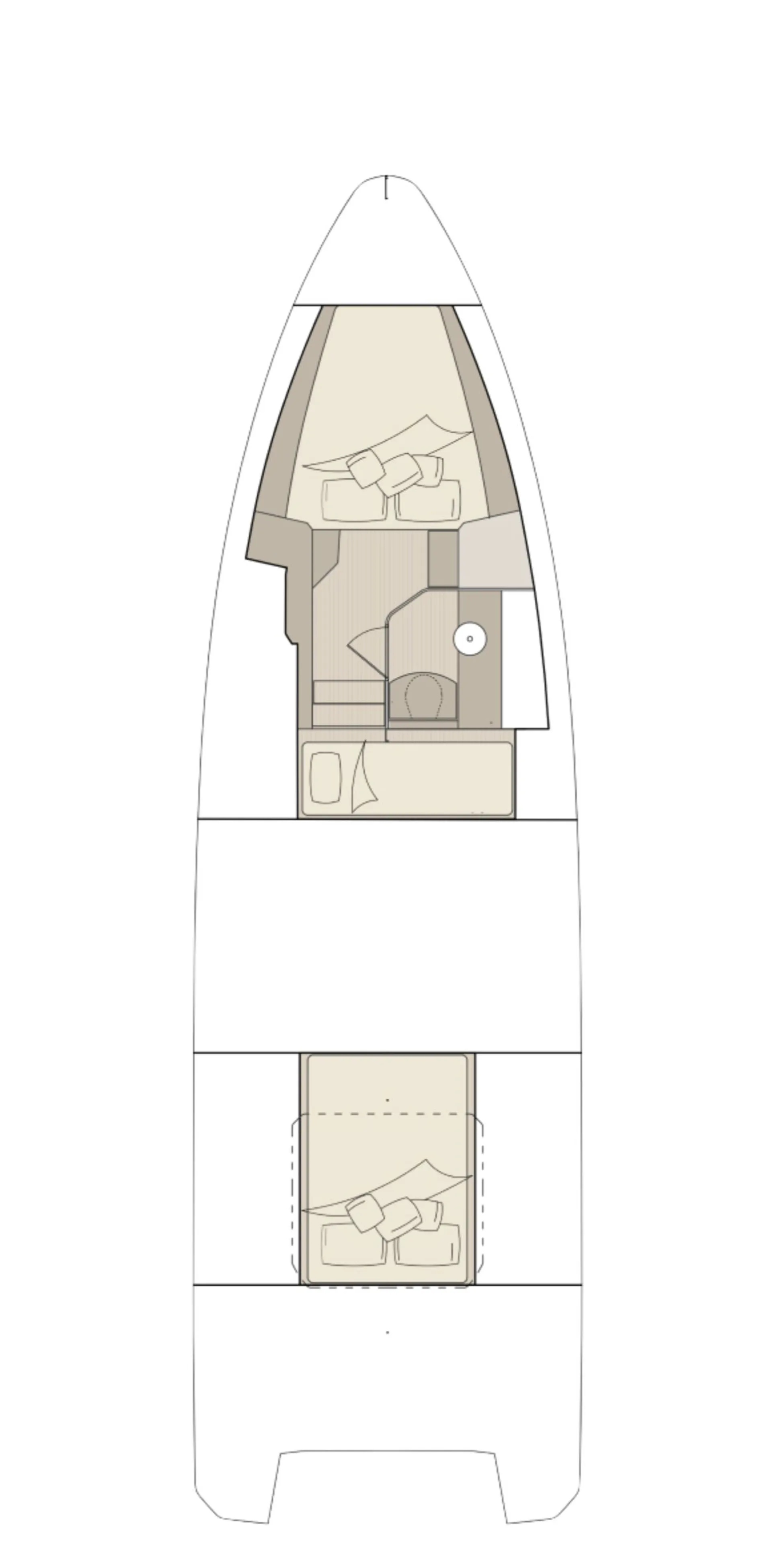

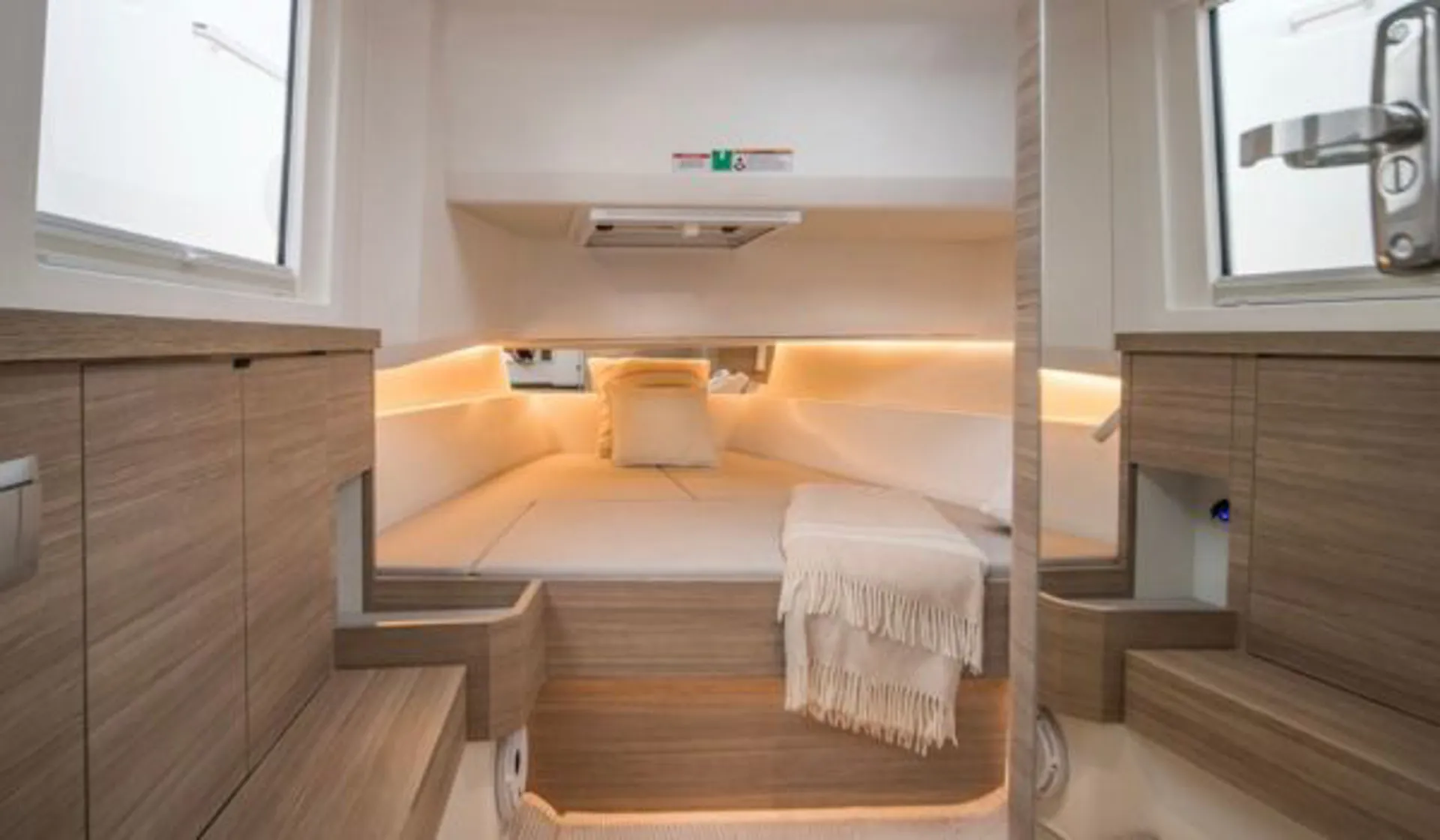

LAYOUT – FRONT CABIN

• Nicely finished cabin with semi-matt light wood/composite interior (horizontal grain)

• V-double bed in bow with comfort mattresses

• Spacious wardrobe to starboard at the foot of the bed

• Movable seat

• Carpet

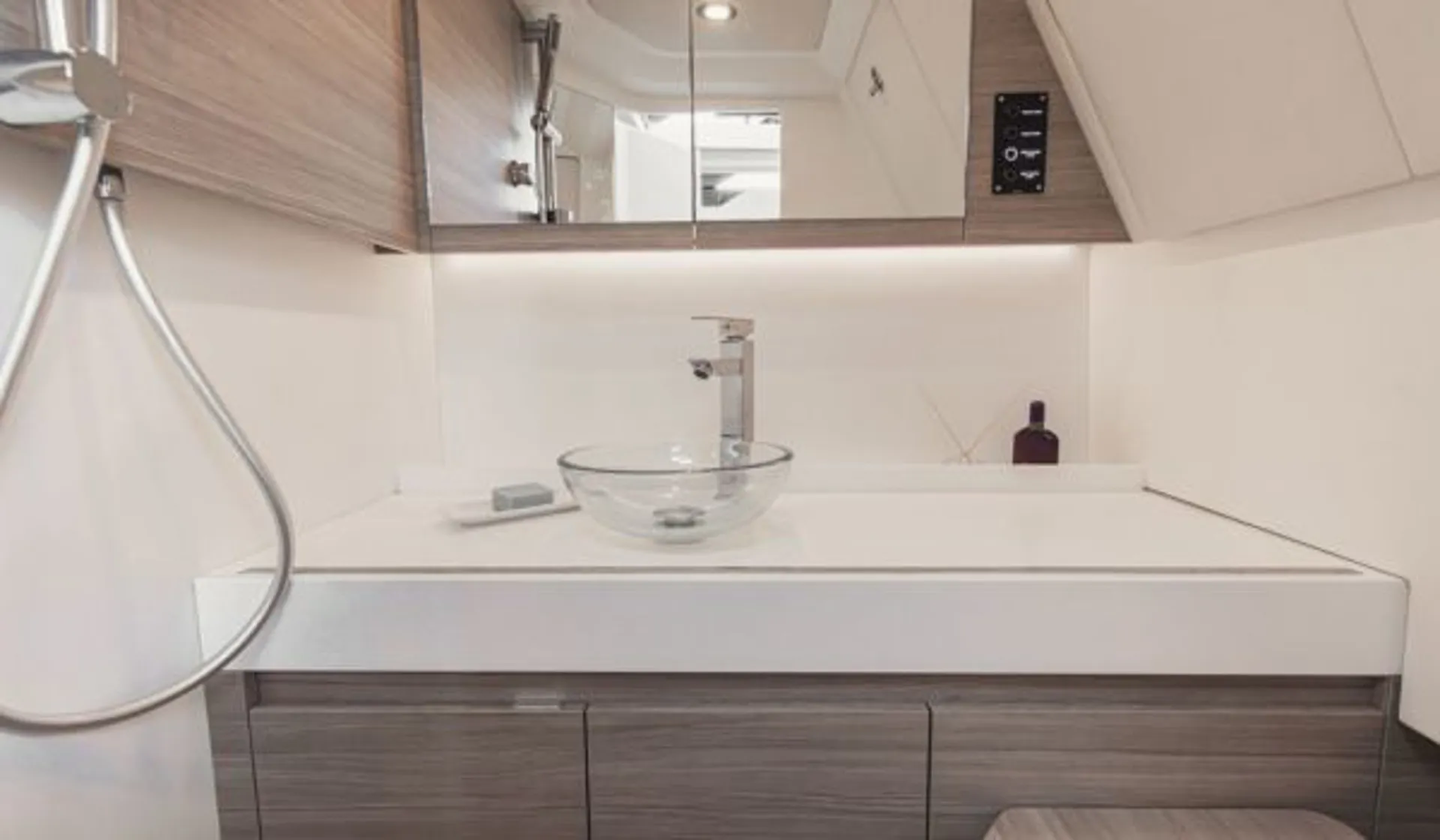

• Bathroom with combined shower and toilet (starboard side)

• Storage behind the stairs leading to the main cabin

• Main electrical panel and controls

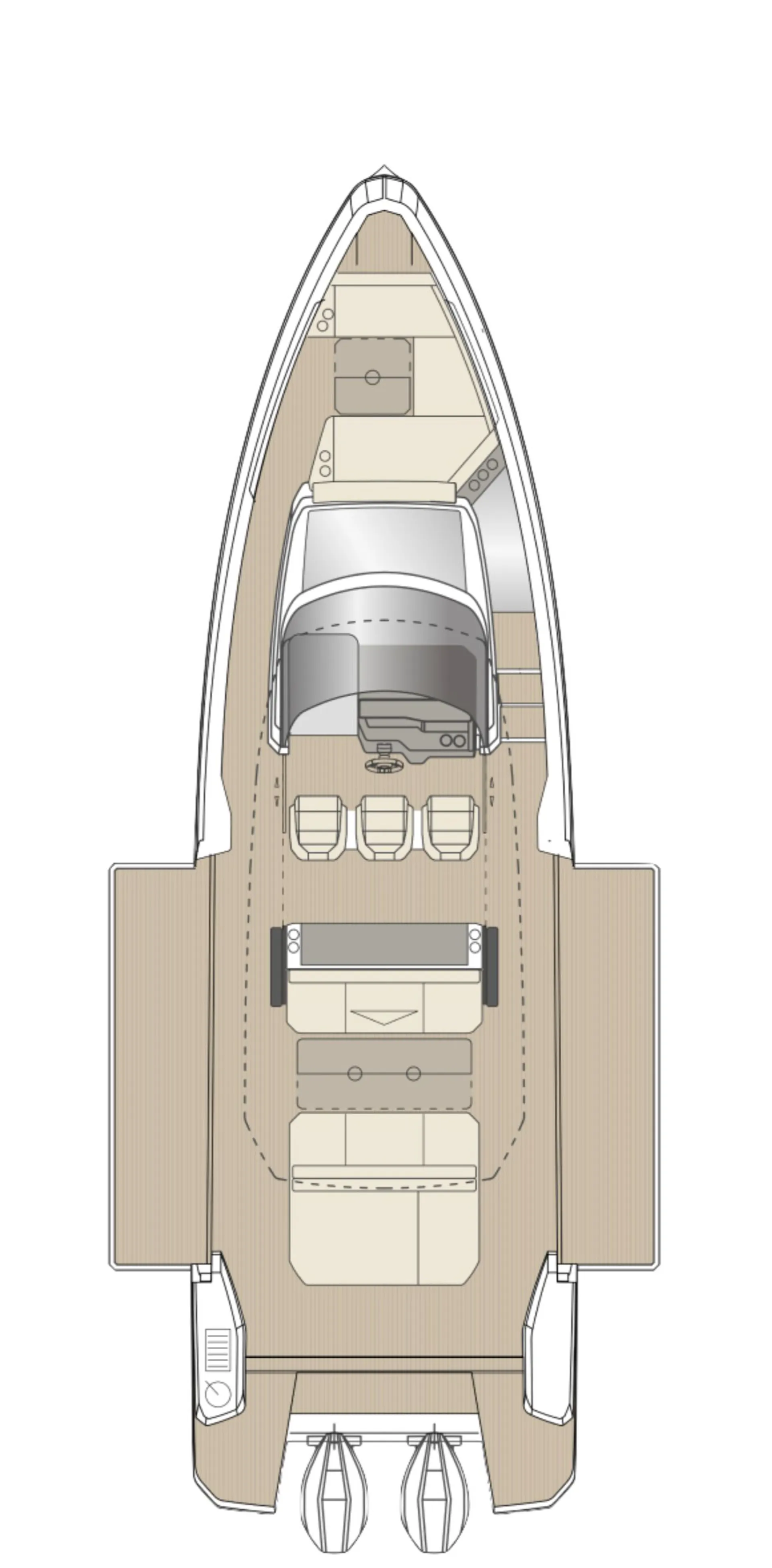

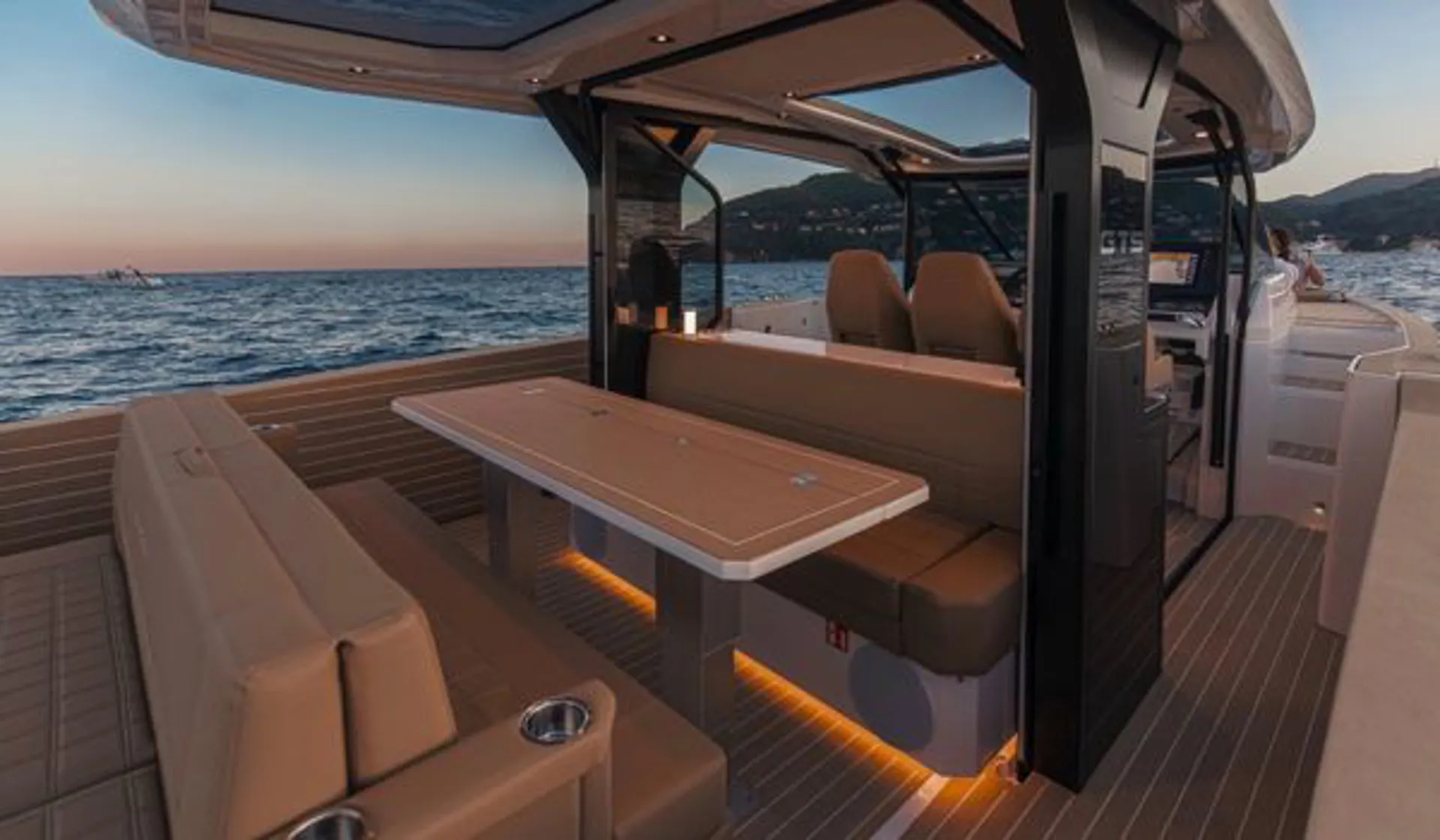

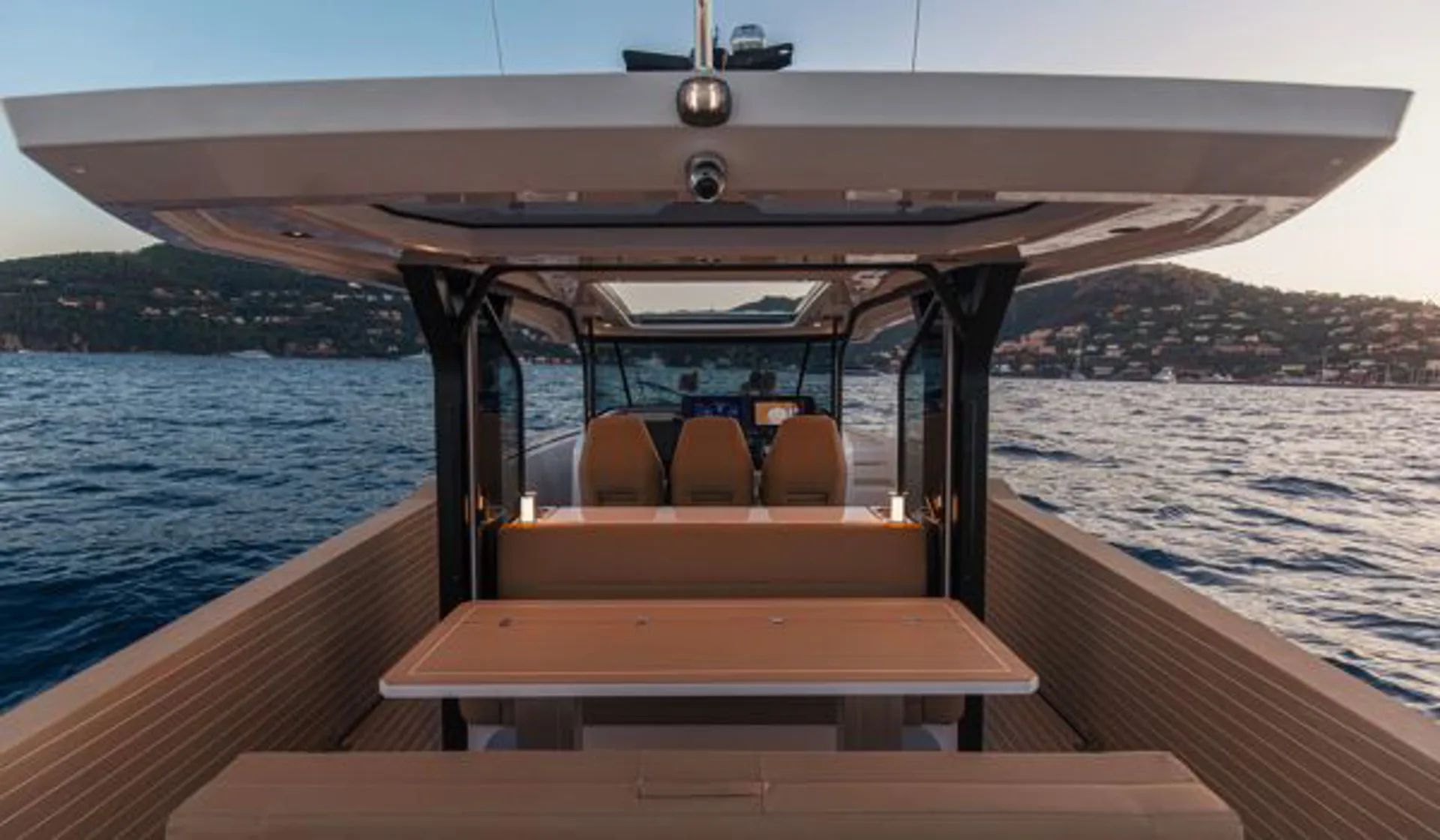

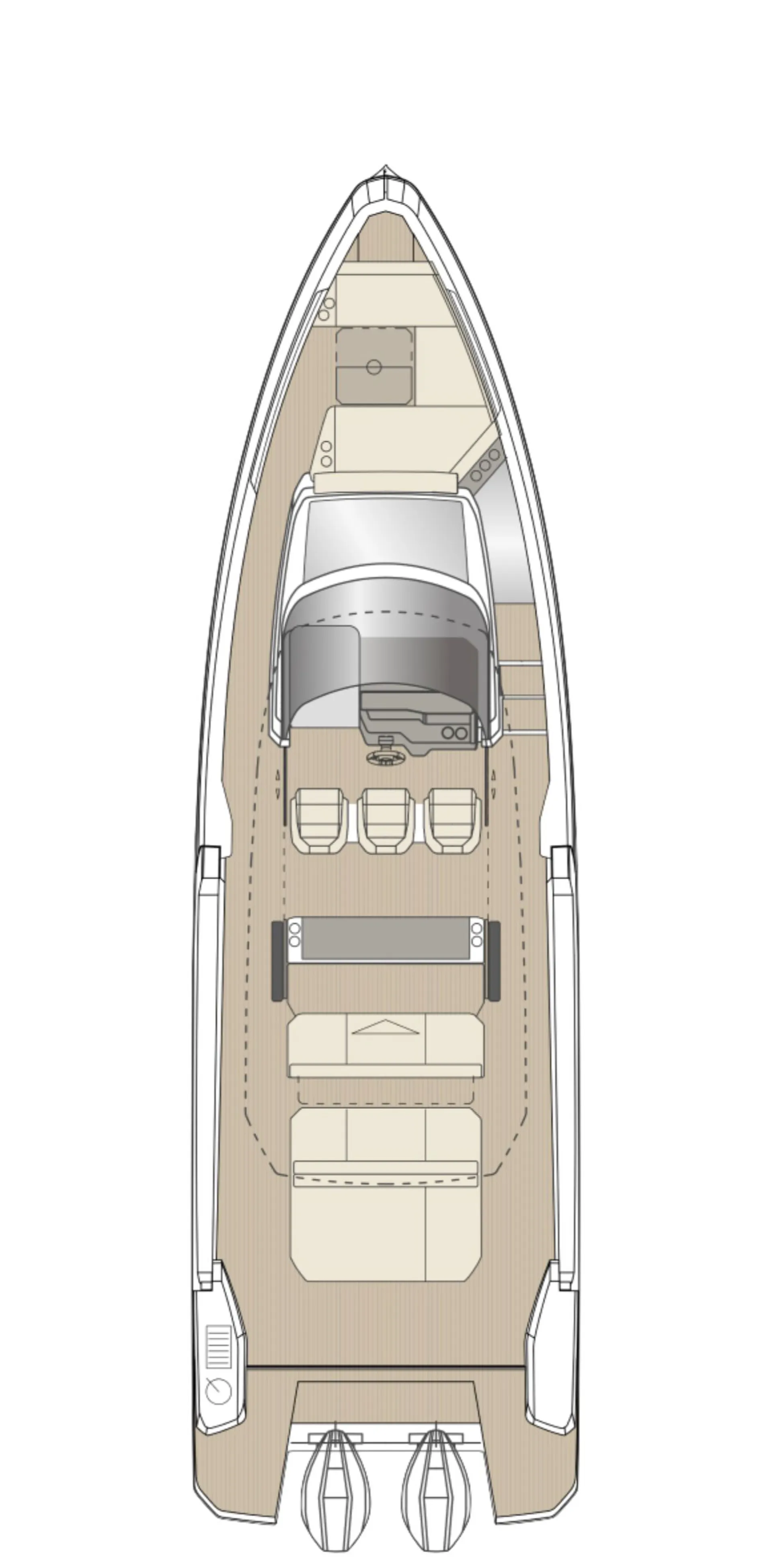

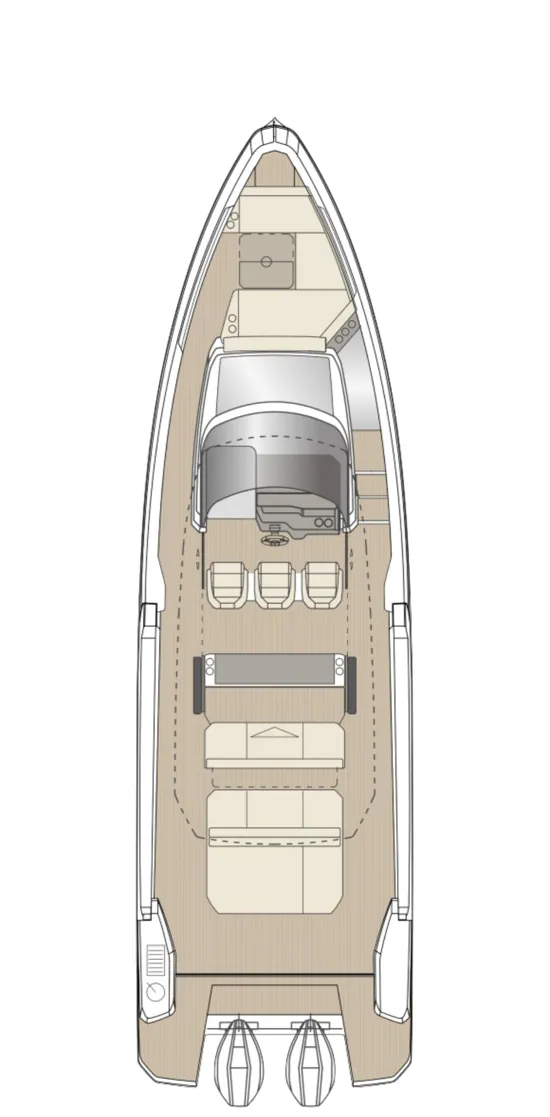

DECK LAYOUT (BOW TO AFT)

• Spacious bow storage compartment

• Storage under bow seating modules

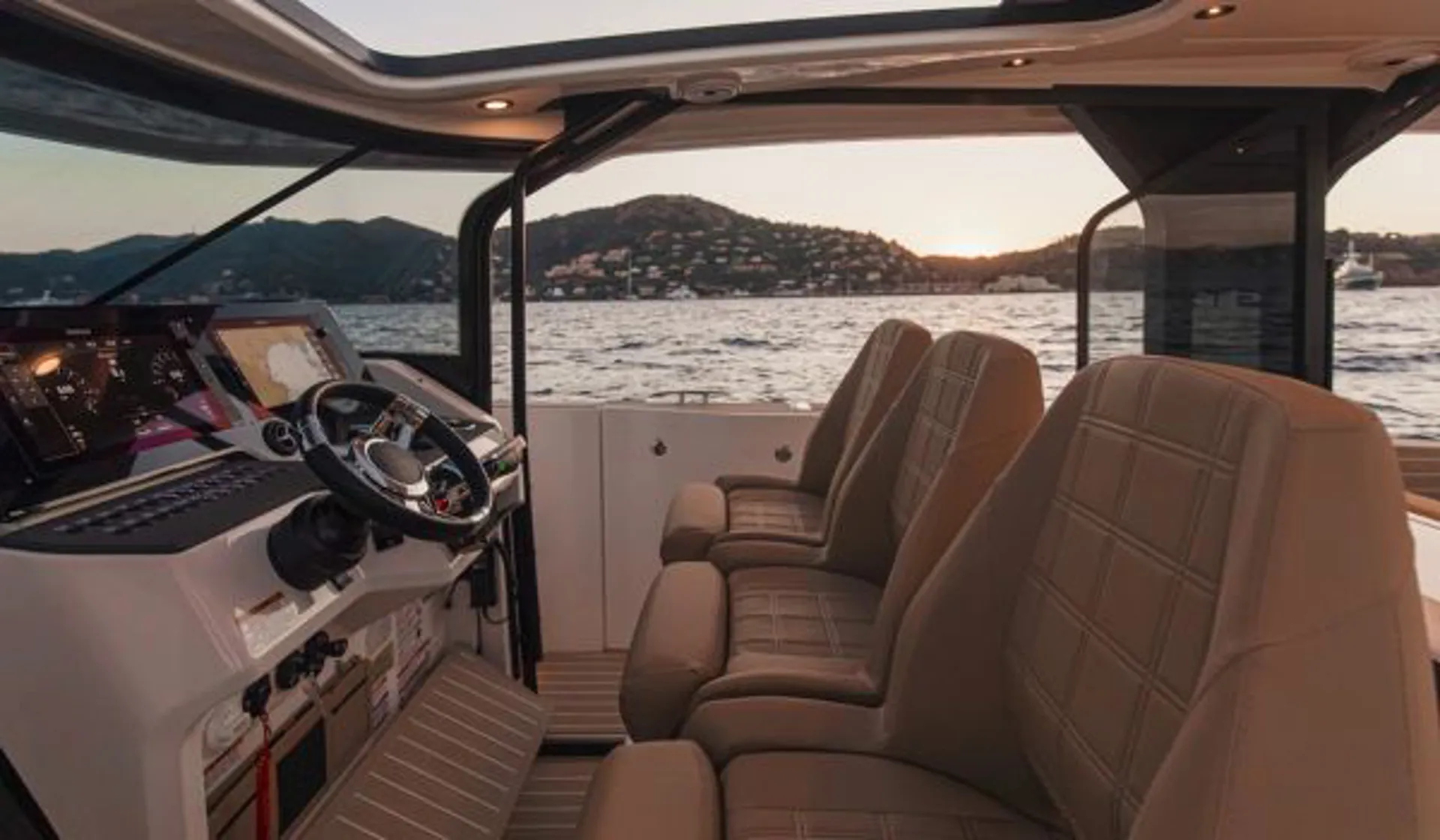

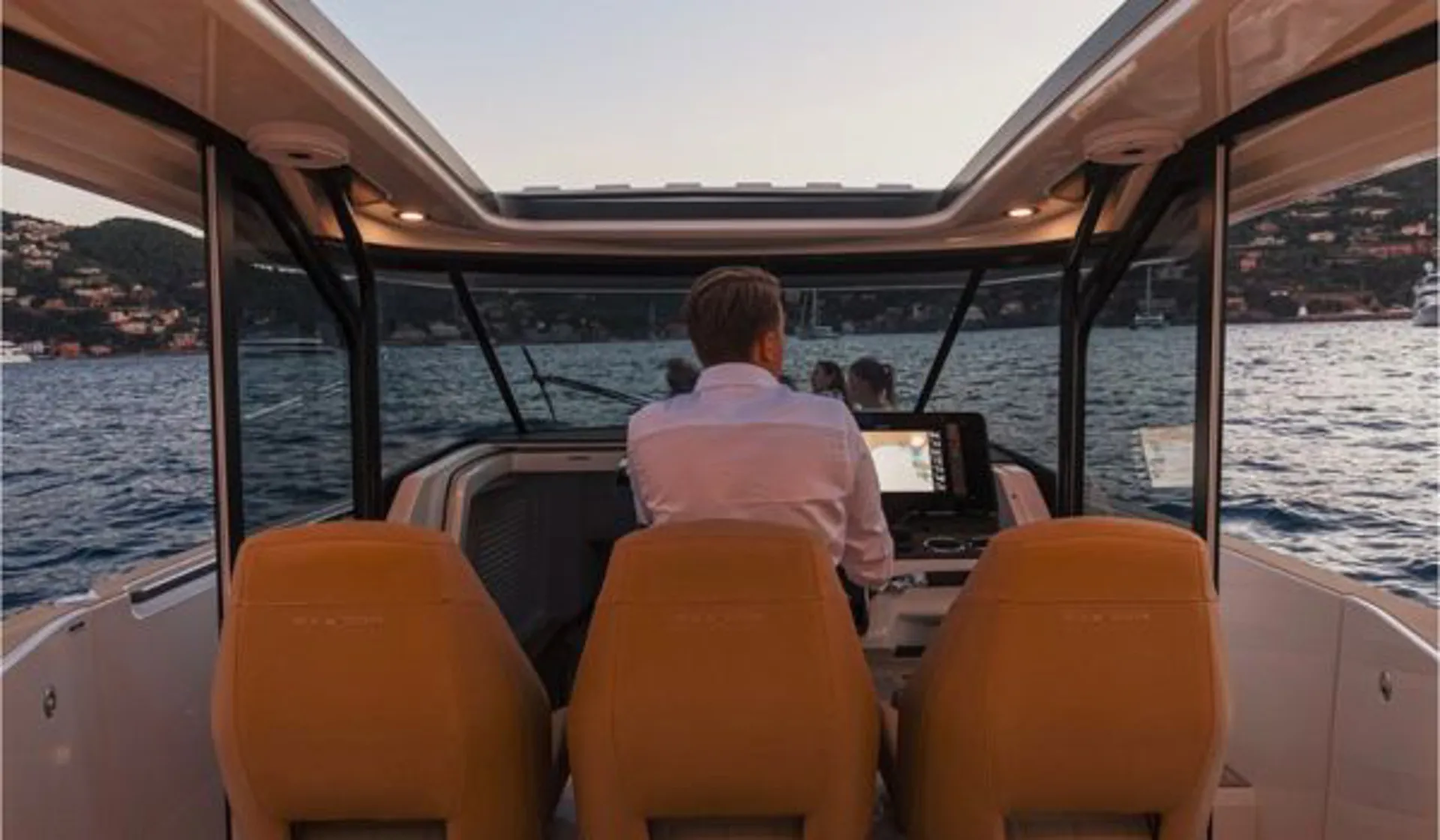

• Helm area with 3 individual bucket seats with armrests

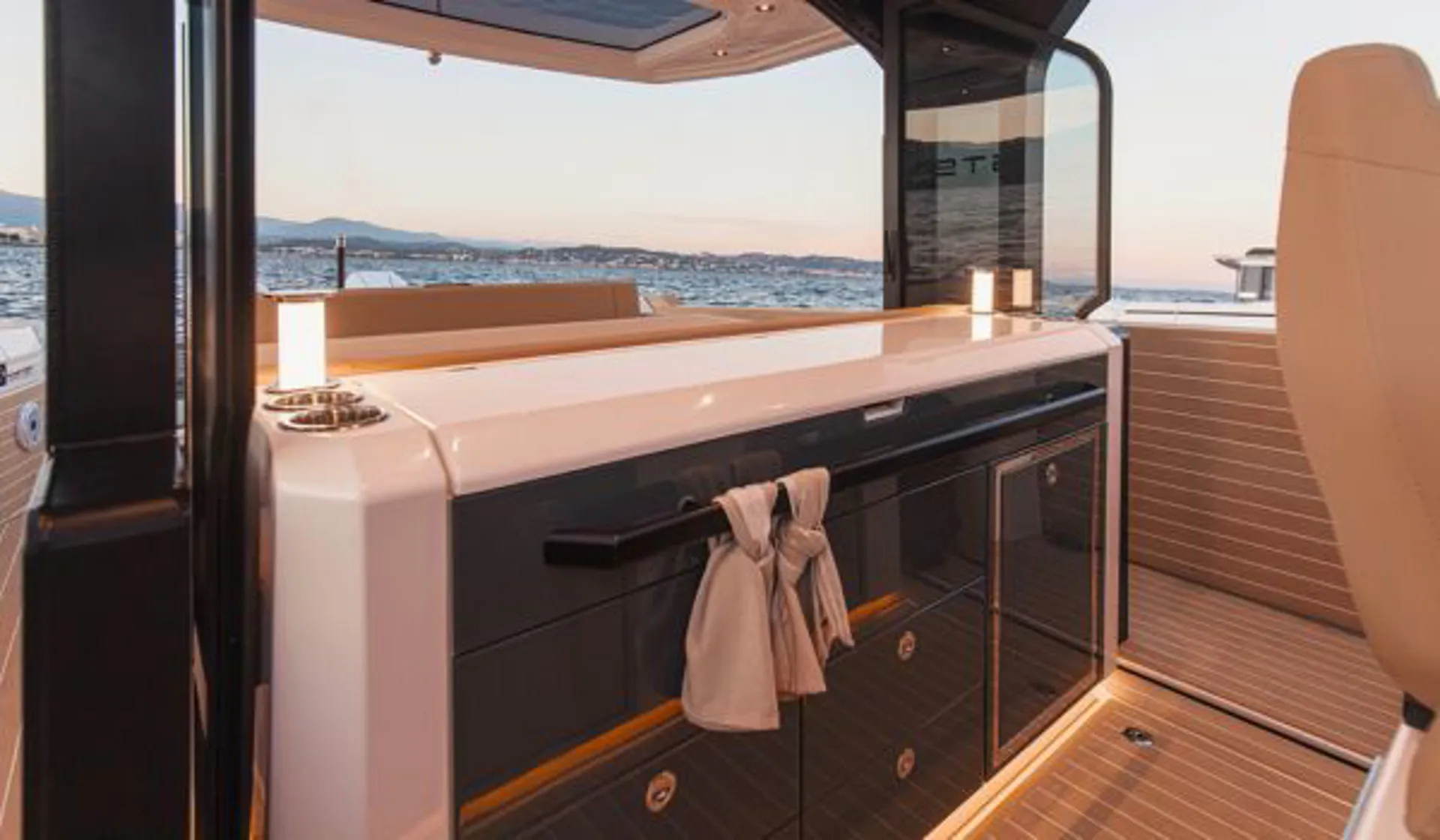

• Wet-bar module:

  • Sink and tap

  • 2 cup holders

  • 4 drawers

  • Drained insulated ice box

  • Waste bin

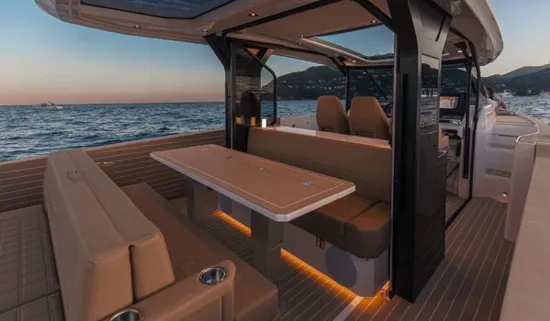

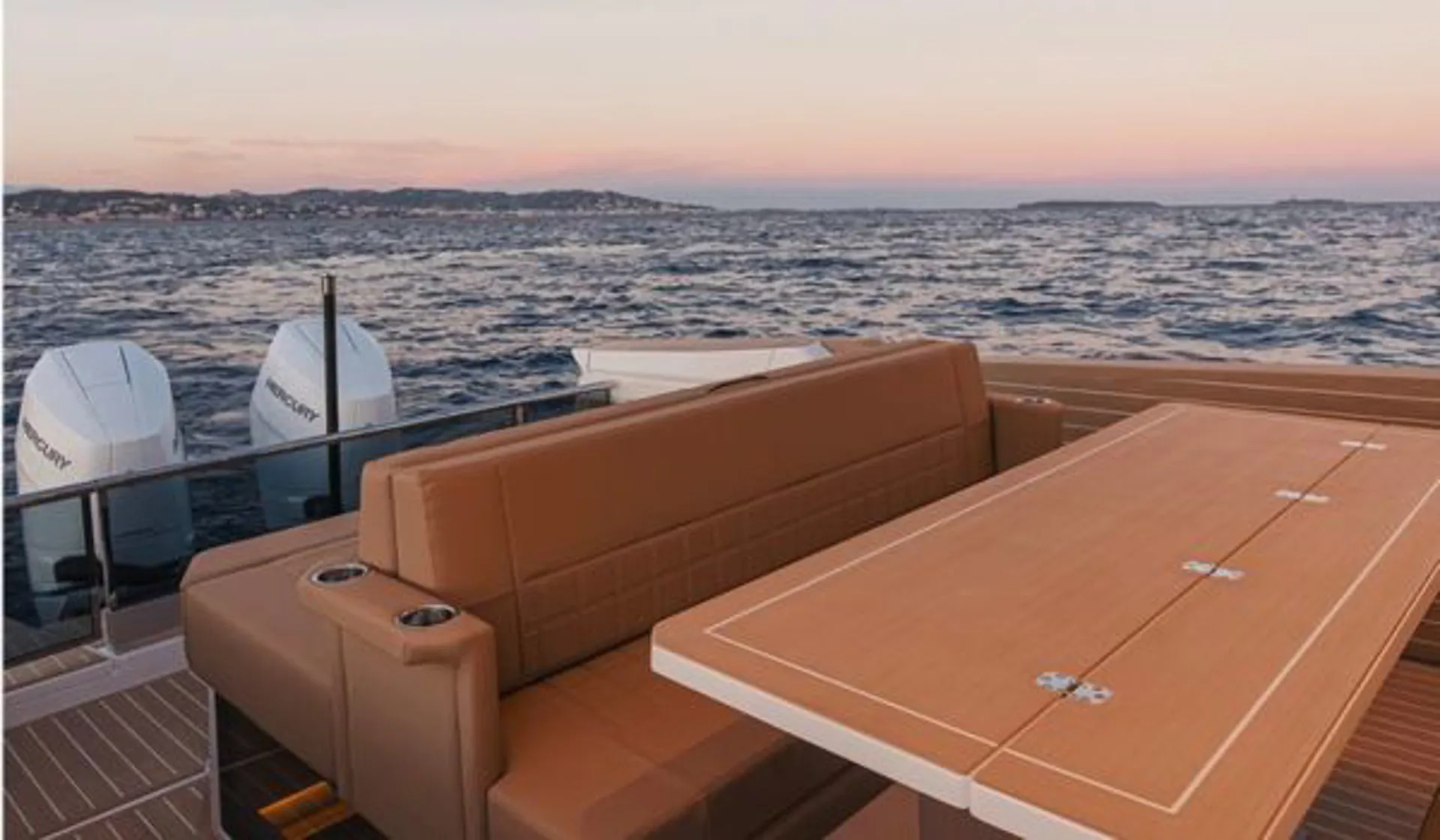

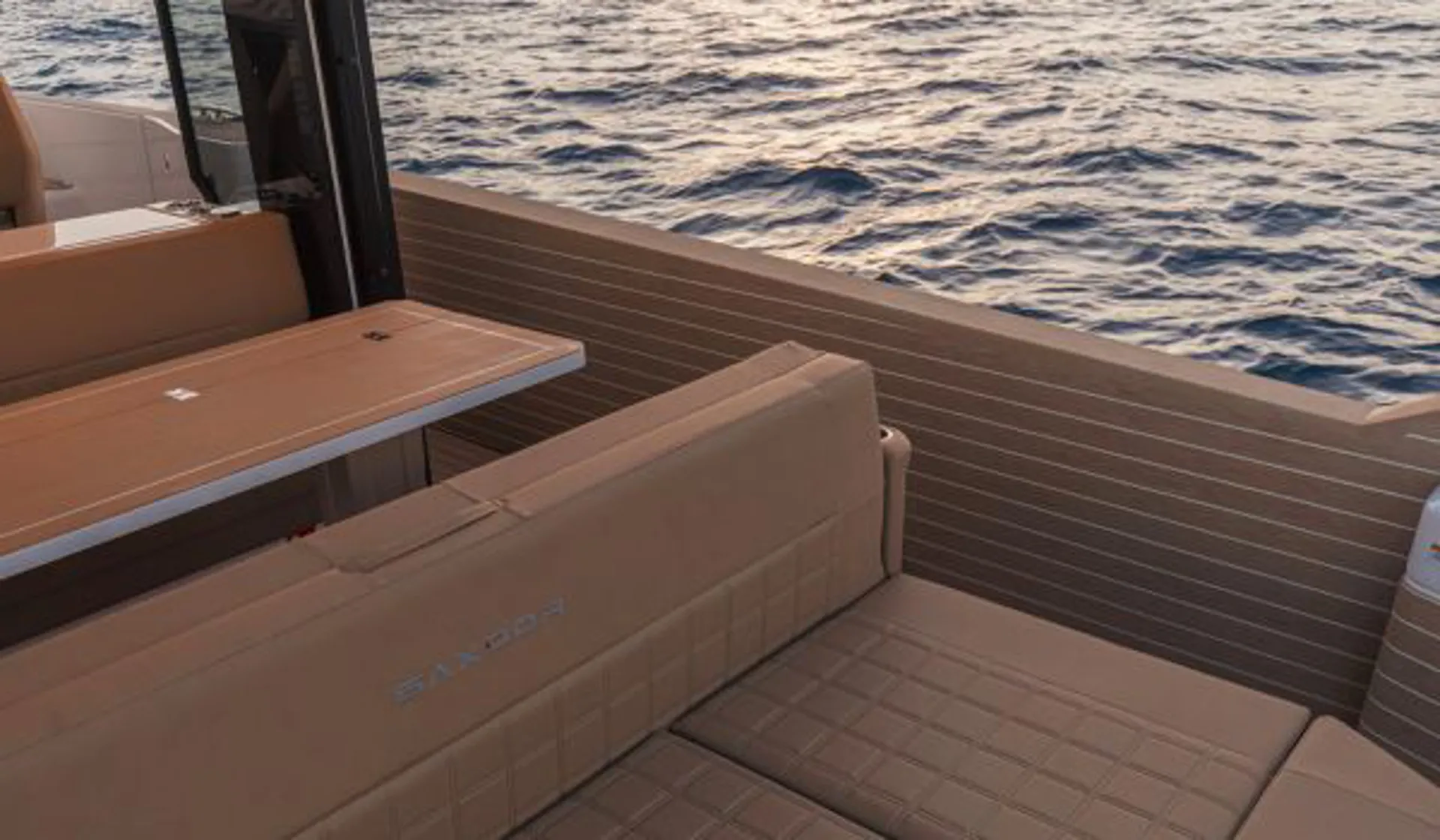

• Aft-facing sofa for 3–4 persons

• Forward-facing sofa for 3–4 persons

• Toy storage under seating

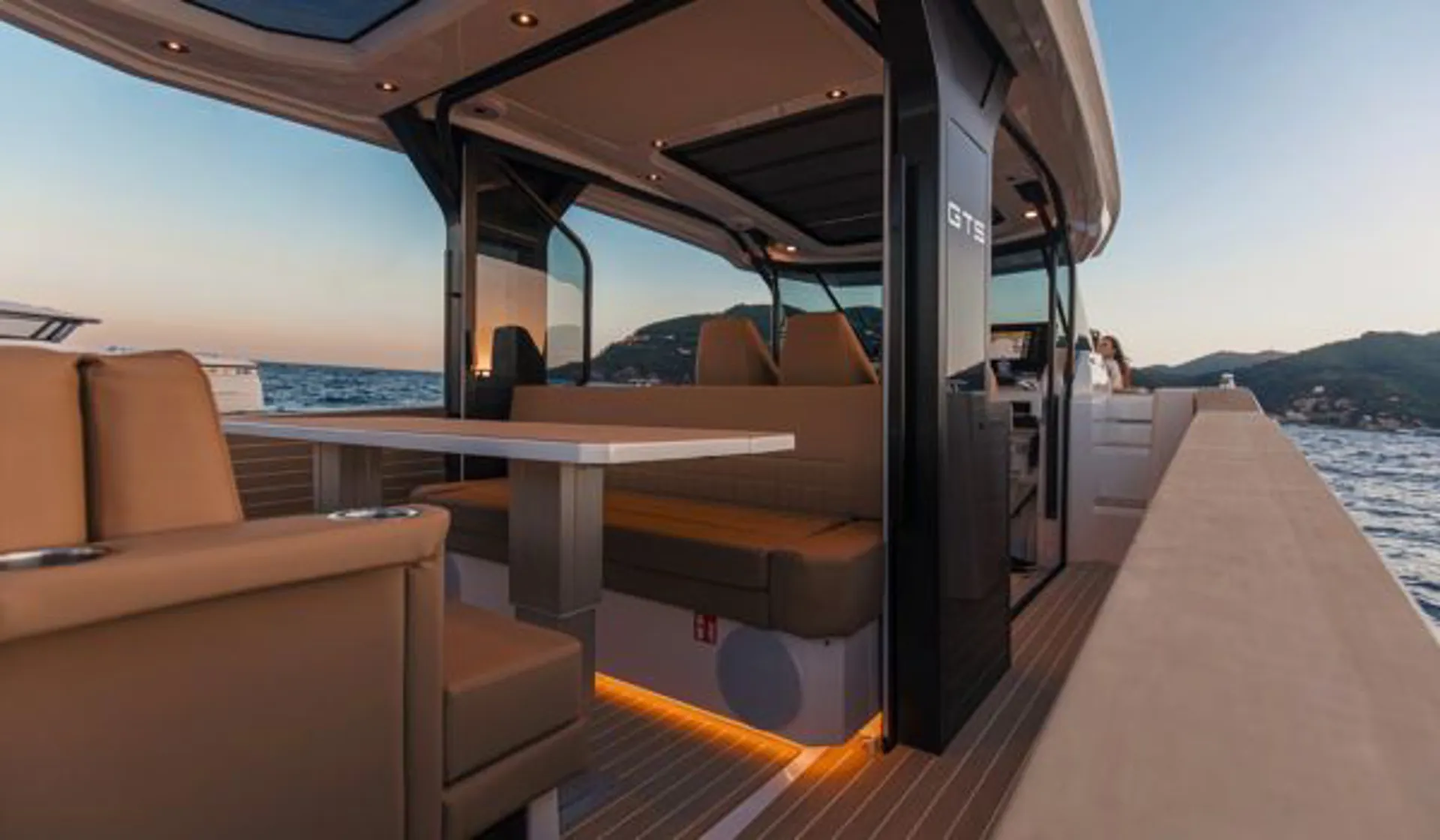

• Foldable high-gloss white RTM table with electric pedestal – including table cover

• All seats and sofas supplied with covers

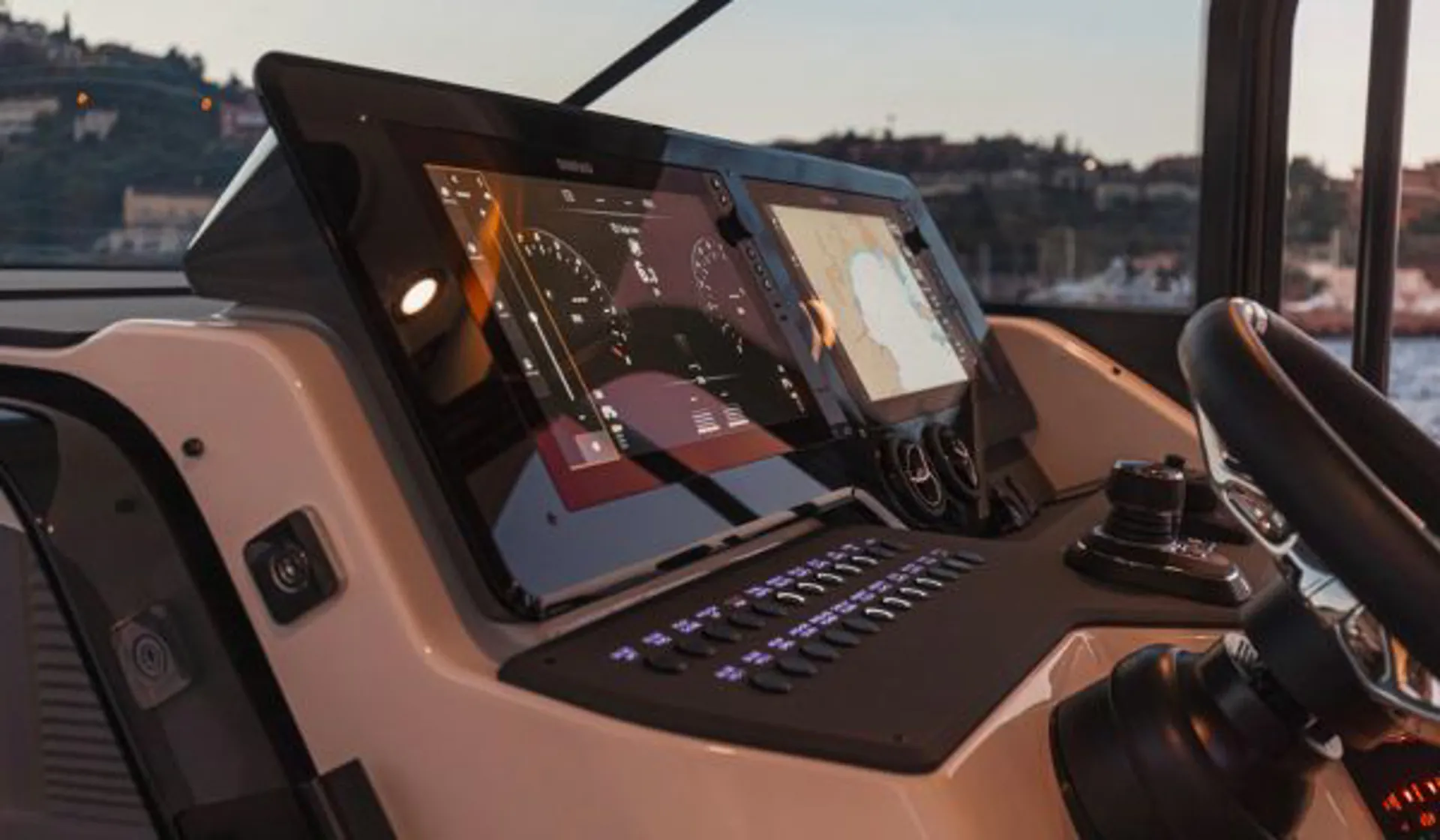

TECHNOLOGY AND NAVIGATION

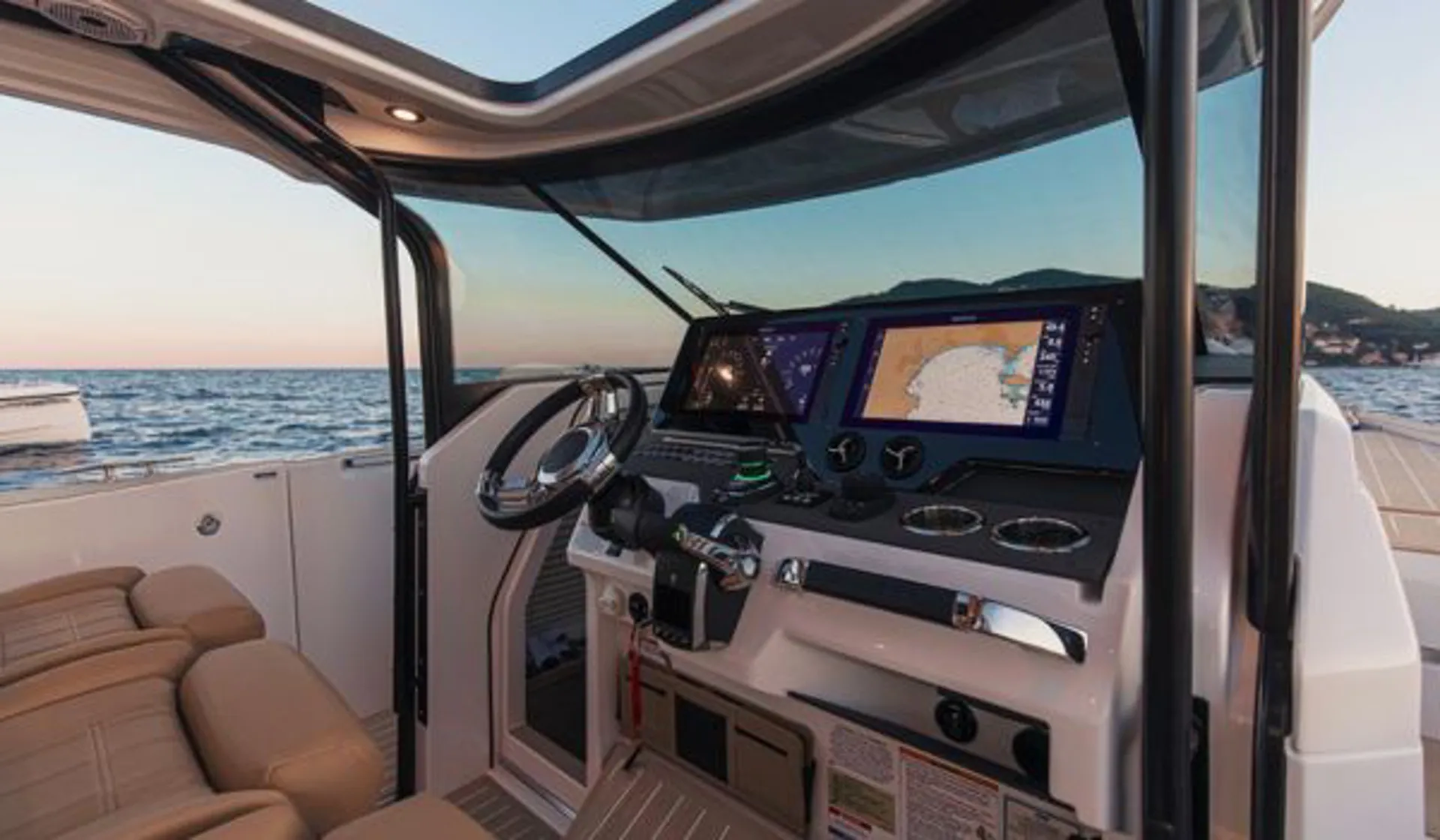

• 1 x 16" Simrad NSS4 display

• MySaxdor Connect hardware with remote connectivity

• MySaxdor onboard application (monitoring batteries, shore power and fluid tanks)

• Mastervolt shore power system:

  • 100A battery charger

  • 15 m shore power cable

  • AC outlets

• 12V USB-C outlets (console and bow cabin)

• Inductive (wireless) charger at helm

• Prepared for:

  • Full Mercury integration

  • Audio system integration

  • Trim tab system

  • Night vision camera

COMFORT

• Refrigerator 51 L (port side of helm module, drink model – no freezer)

• Fresh water system – 170 L tank with level sensor

• Hot water system – 40 L boiler

• Electric toilet

• Black water system – 53 L tank

ENGINES AND PROPULSION

2 x Mercury V10-425 ES White +Joystick JPO

ROOF OPTIONS

Openable fabric roof electric system

GELCOAT AND DECK

Pure white RAL 9010
Anti skid
Flexiteek deck

NAVIGATION OPTIONS

Advanced navigation package
Simrad Halo 20+ radar
Simrad RS100-B VHF radio and AIS
IR camera facing aft working as back up camera
Search light on top of roof

POWER SYSTEMS

E-fathom GRP with 2 x lithium batteries EU 12 kWh and 3.5 kW inverter
High power engine charge 10–12 kW
240 volt generator replacement package 12 kWh battery capacity, 48 volt
Battery package for engines and 12 volt domestic system
2 x starter batteries Optima 1000 MCA
2 x domestic batteries 140 Ah gel
Bow thruster battery
1 x bow thruster battery Optima 1125 MCA

COLD AND HOT

Air condition package 6–10 kBTU for cabins EU 240 volt
Dometic GVTX10 variable speed unit with heating and cooling
Outlets in cabins and helm
Defroster on windshield

BOAT HANDLING OPTIONS

Bow thruster on off
Bow windlass with 16 kg stainless steel Ultra anchor including 40 meter rope and 10 meter chain
Trim tabs traditional flaps with Lenco Pro controller full auto

WATER SYSTEM OPTIONS

Shower on starboard aft deck hot and cold water
Upgrade to comfort toilet
Fresh water wash down pump in bow
Additional outlet for wash down pump in aft

AUDIO OPTIONS

Advanced audio package JL Audio including 10 speakers and subwoofer

LIGHTING

Light package
Deck lights
Ambient floor lights around deck modules, ceiling and in cabins
Underwater light
2 pop up lights in wetbar

UPHOLSTERY

Marble

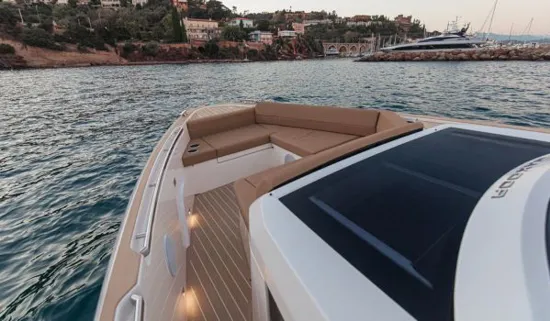

BOW DECK LAYOUT

Bow sofa cushion set including covers
White high gloss foldable RTM table with manual leg including table cover
Flexiteek on top of RTM table

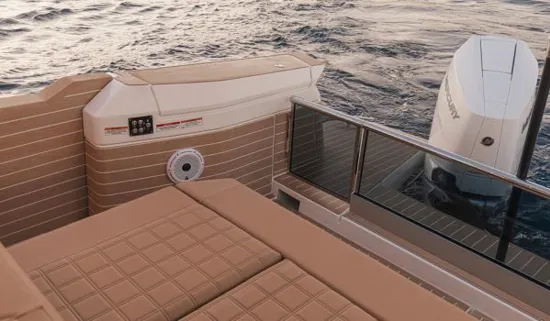

AFT DECK LAYOUT

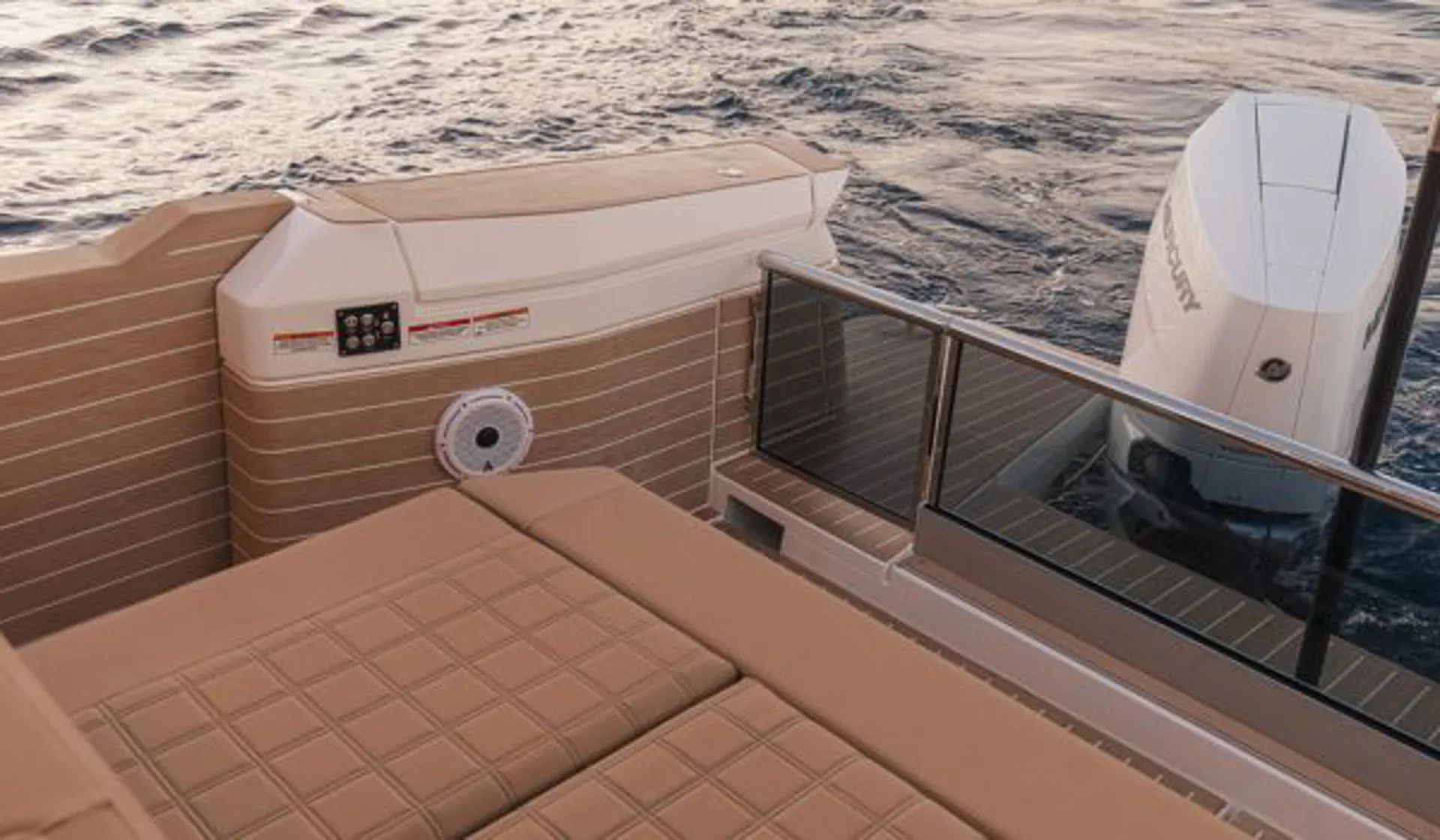

Sunbed sofa on top of toy storage aft cabin
Upgrade of toy storage to aft cabin
Additional storage
Furniture
Aft cabin mattress and topping mattress
Upholstery panels
USB outlets
LED lighting

CANOPY AND SUNSHADES

Curtains in front cabin with mosquito net
Curtains in aft cabin

COMFORT

Electric stove one burner Kenyon with pop up in wetbar EU 240 volt

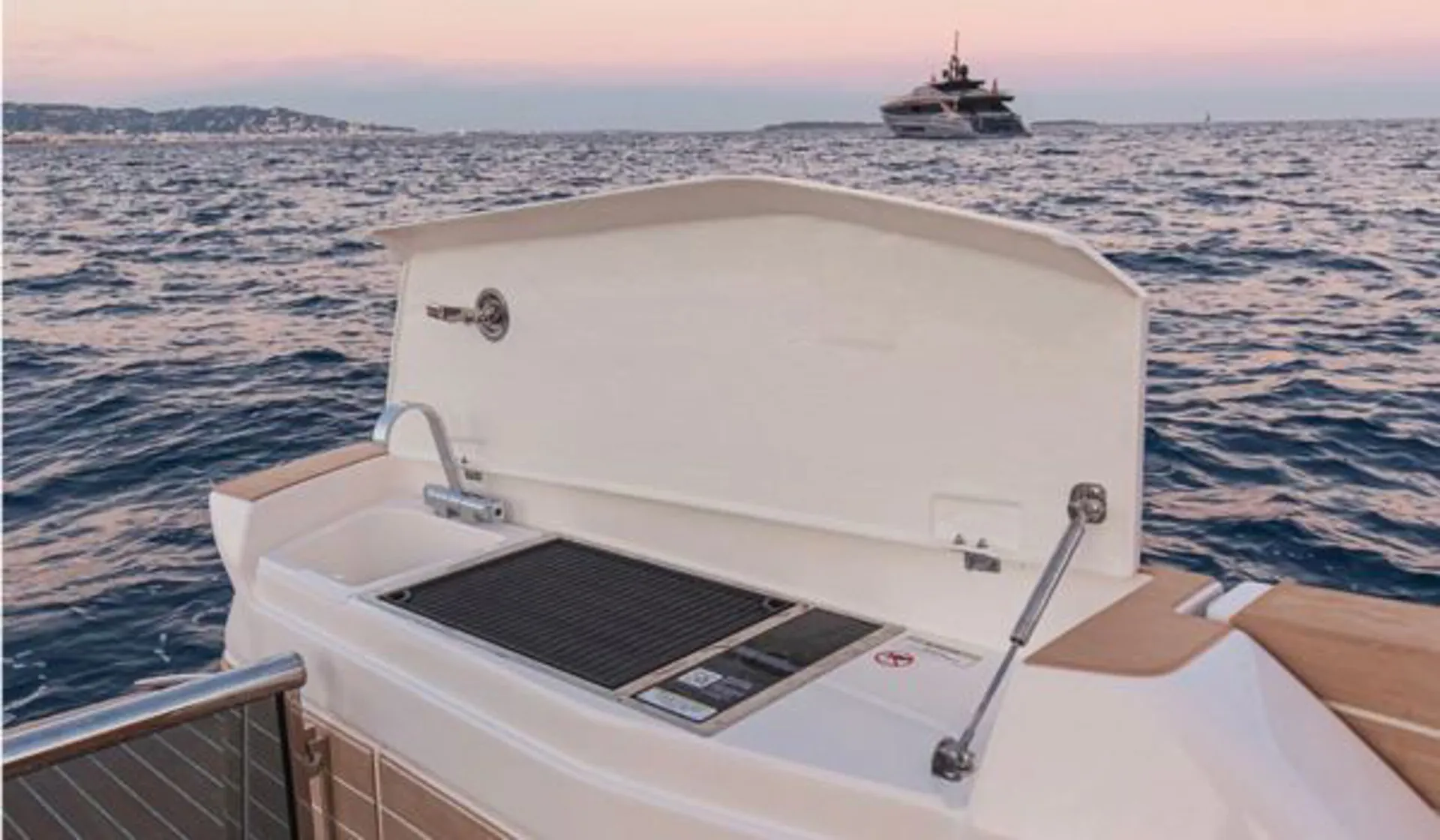

BBQ package Kenyon grill and sink in aft port box EU 240 volt
Additional second refrigerator starboard side of helm seat module 51 litres drink model no freezer
Upgrade to bathing ladder with hand rails
Warranty extension 2 years plus 1 year individual use and 1 year plus 1 year commercial use
